Small Retail businesses

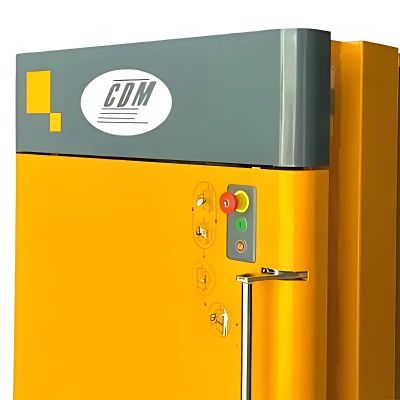

Vertical Baler B4 Powerful and Compact Baler

  •  The B4 is a small machine that packs a powerful punch with a high press force and an automatic ejection system.


  • You generate a significant amount of waste on a consistent basis, even if the size of the waste is moderate.


  • You want bales up to 70 kilograms and 37 inches wide for easy handling and stacking.


  • You value the efficiency, practicality and savings this equipment can offer you in terms of space, mobility and consumption.


  • It also values all the safety and efficiency features that ensure reliable and quiet operation for its personnel.

Contact us

The baler B4 press presents itself with very useful functions if it is compacted with other presses of compact size. The compression force, its long stroke and the effective fixing systems allow a high degree of compaction to be achieved.

In the Baler B4 a fully automatic indicator light indicates when the bale is ready and prevents overloading of the camera. An automatic system allows ejecting the bundle fastened with straps.


*Easy to connect

Works with a single-phase power supply.

*Safe operation

This compactor machine complies with European safety standard EN16500.

*Control of the machine from the front

The Baler B4 press adapts to any space.

Highlights and product features

Powerful and compact

The B4 is a small machine that packs a powerful punch with a high press force and an automatic ejection system.


Safe to operate

Users safely eject finished bales using the two-hand ejection system.



B4 - Efficient small footprint baler:


  • Automatic ejection system
  • Full bale indicator light
  • Very low noise level (<60 dB)
  • Low overall height (6.5 ft.) and small base area (3 ft.)
  • Finished bales weigh 85 - 155 lbs.
  • Easy and convenient operation in front of baler
  • Powder Coating provides durable finish in many colors


Contact Us

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Safe to operate

Technical Specifications

Bale weight cardboard (lbs) 85-130

Bale weight plastic foil (lbs) 110-155

Bale size WxDxH (inch) 30 x 20 x 24

Press force (lbs) 8.800

Power supply 110V 1-Phase 60Hz 10A

Motor (HP) 1.0

Noise Level (dB) 57-60

Cycle time avg. (sec) 48

Dimensions WxDxH (inch) 37 x 28 x 79

Weight (Lbs) 661

Feed opening WxH (inch) 30 x 18

Load height (inch) 26

Chamber height (inch)39

Stroke (inch) 26

Number of ties 2

Type of tying Twine

Full bale light Yes

Bale eject Automatic
